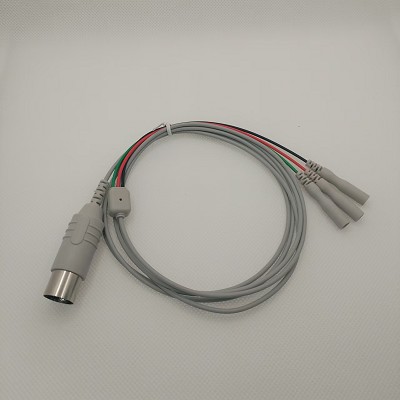

DIN 5-Pole (240°) Plug to 3 x DIN 1.5mm Touch-Proof (TP-male) Adaptor
These EMG DIN Adapter cables come pre-assembled with 3x DIN 1.5mm touch-proof (TP) connector (male sockets), a 150cm connection cable, and terminates in a 5-pol 270° connector. It can be used for a variety of different applications, commonly used for EMG and NCS (nerve conduction study) applications to connect EMG needles and electrodes to an electrical stimulator or biosignal acquisition device.
The shielded electrode cables with DIN 1.5mm touch-proof (TP) male sockets are suitable for the conduction of single or multi-channel action potentials, as well as for all versions of electrodes with DIN 1.5mm touch-proof (TP) female connectors. This cable can be used for cup electrodes, surface electrodes, conduction electrodes, sensitive loop electrodes, disposable adhesive electrodes, and connection cables with crocodile clips. The reference and earth inputs connected with bridge adapters (jumpers) can be interconnected as required.
The pinout of this EMG DIN adapter is: Pin 1 = Black (A) // Pin 2 = Red (R) // Pin 5 = Green (Ground, GND).
The shielded electrode cables with DIN 1.5mm touch-proof (TP) male sockets are suitable for the conduction of single or multi-channel action potentials, as well as for all versions of electrodes with DIN 1.5mm touch-proof (TP) female connectors. This cable can be used for cup electrodes, surface electrodes, conduction electrodes, sensitive loop electrodes, disposable adhesive electrodes, and connection cables with crocodile clips. The reference and earth inputs connected with bridge adapters (jumpers) can be interconnected as required.
The pinout of this EMG DIN adapter is: Pin 1 = Black (A) // Pin 2 = Red (R) // Pin 5 = Green (Ground, GND).
