Product information "Electrode board adapter"
Electrode board adapter 25-pol on 20 x 1,5mm TP
With this practical adapter, the connection of your headbox always remains free and protected. The EEG bonnet can be easily connected and removed via the adapter, which speeds up the examination procedure and makes handling easier.

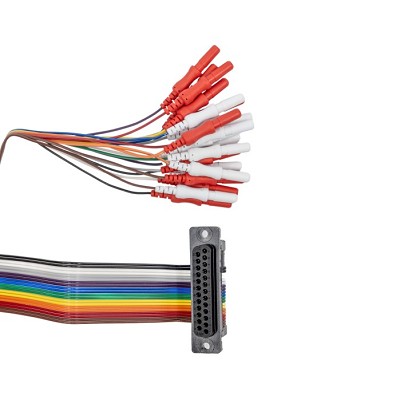

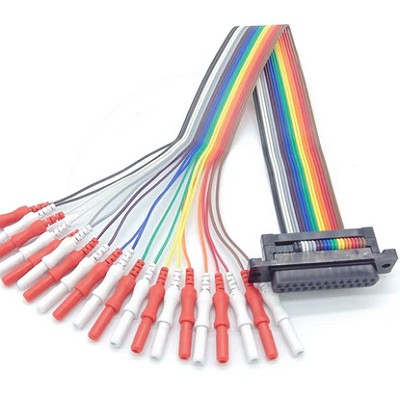

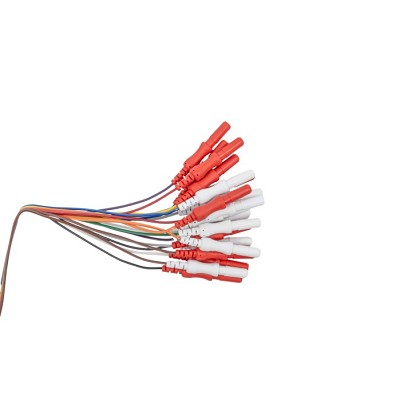

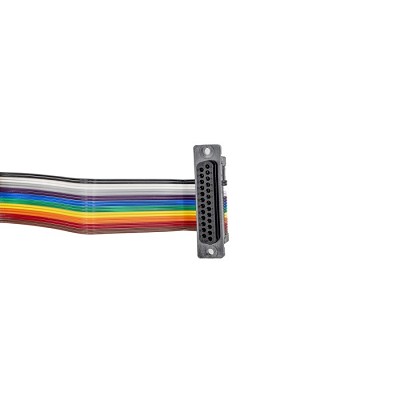

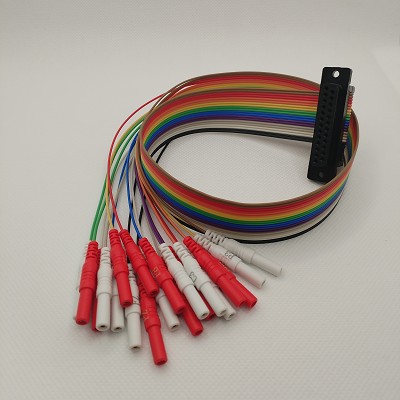

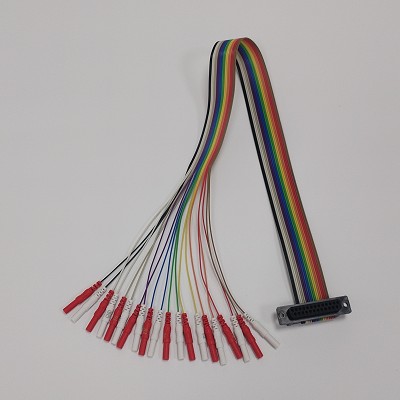

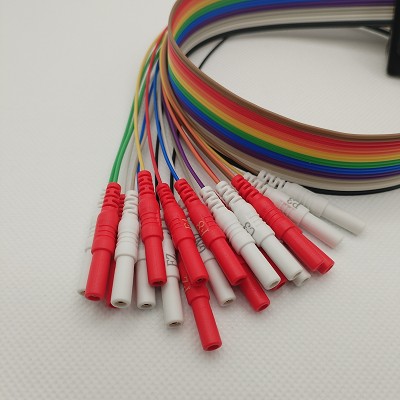

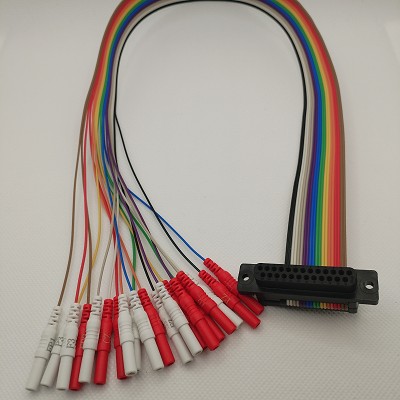

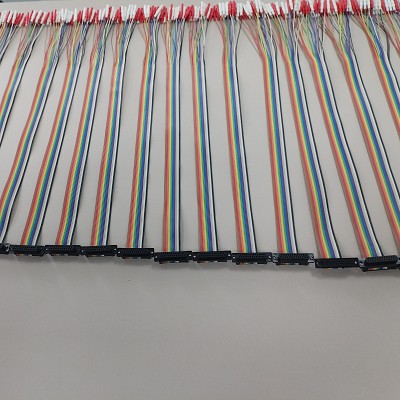

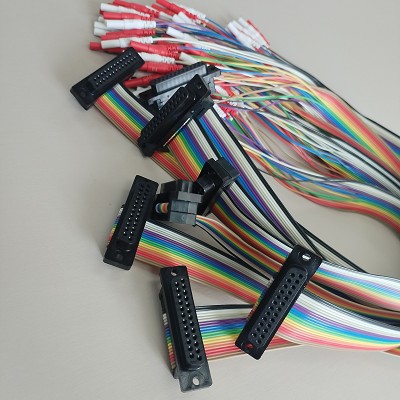

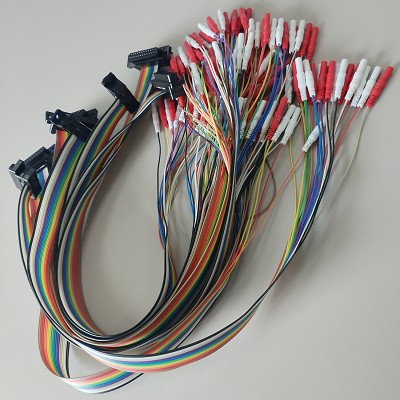

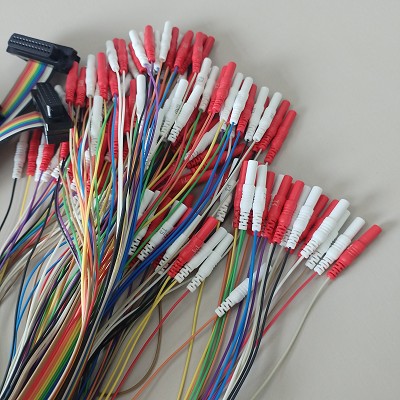

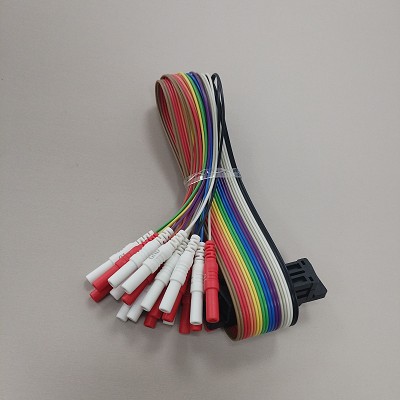

Electrode Board Adapter  (Elector-Cap) allows for connecting Electro-Cap EEG caps to a biosignal amplifier with touch-proof inputs. The adaptor comes pre-assembled with a D-Sub 25 plug which connects to the Electro-Cap EEG cap and 20 single DIN 1.5 mm touch-proof (TP) sockets (female connectors). The cable length is 50 cm. The single cables are color-coded for easy distinction and identification.
The Electrode Board Adapter converts the EEG instrument from individual electrodes to the Electro-Cap system. Each wire is color-coded for easy identification. Once the EBA is plugged into the machine, a single plug connects the appropriate cap. Special and custom EBA's are available upon request.
