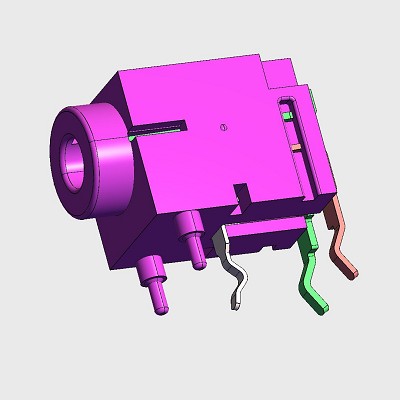

161-3564-E-3.5MM MONO PHONE JACK PCB CONN

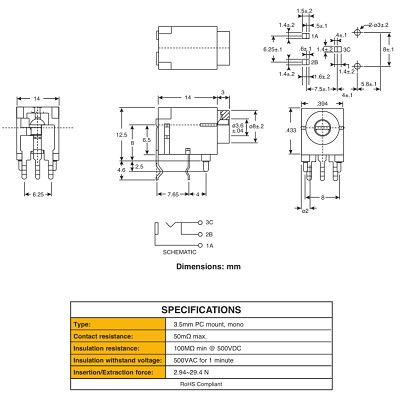

SPECIFICATIONS
Type:3.5mm PC mount, mono
Contact resistance:：50mΩ max.
Insulation resistance:00MΩ min @ 500VDC
Insulation withstand voltage:500VAC for 1 minute
Insertion/Extraction force:2.94~29.4 N
RoHS Compliant
